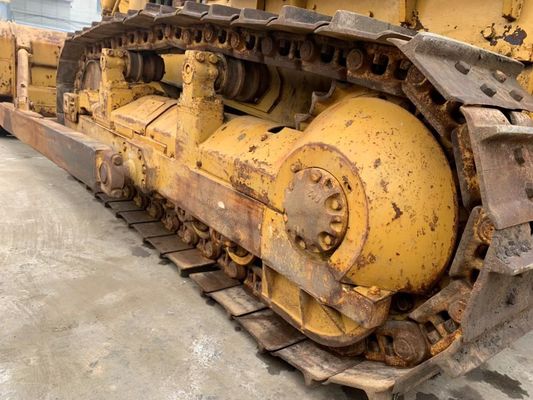

100% Japan D6D Old Caterpillar Bulldozer / Used Cat Dozers 2012 Year
Parameters
| Engine | |
| Engine Make | 2236 |
| Engine Model | 3306 |
| Gross Power | 104 kw |
| Displacement | 10.5 L |
| Aspiration | turbocharged |
| Operational | |
| Operating Weight | 9235 kg |
| Fuel Capacity | 238 L |
| Hydraulic Fluid Capacity | 45.8 L |
| Transmission | |
| Transmission Type | powershift |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
| Max Speed - Forward | 10.8 km/h |
| Max Speed - Reverse | 12.9 km/h |
| Undercarriage | |
| Ground Pressure | 65 kPa |
| Ground Contact Area | 1.5 m2 |
| Standard Shoe Size | 406 mm |
| Number of Track Rollers per Side | 5 |
| Track Gauge | 1520 mm |
| Hydraulic System | |
| Relief Valve Pressure | 15513.2 kPa |
| Pump Flow Capacity | 166 L/min |
| Standard Blade | |
| Width | 3200 mm |
| Height | 1128 mm |
| Capacity | 3.3 m3 |
| Blade Angle (both directions) | 12 degrees |
| Cutting Depth | 472 mm |
| Dimensions | |
| Length w/o Blade | 3200 mm |
| Width Over Tracks | 1980 mm |
| Height to Top of Cab | 2900 mm |
| Length of Track on Ground | 1830 mm |
| Ground Clearance | 360 mm |
Details
Service
1. offer machine parts within guarantee time
2. pick you up at airport &hotel
3. guide you visit shanghai when you are free.
4. Price is negotiable as we do business at low profit just for future business with you.
Tips
1. Our professional shipping company forwarder can arrange all the shipping works efficiently.
2. We have a very professional team to solve all problems or buy some quick-wear parts for you.
3. All photos and datum are accurately and timely provided
4. All machines are imported legally with complete procedures
