Used XDEM JBS40 Concrete Mixer Pump Machine Diesel 84 Kw

1 unit
MOQ
Negotiable
Price
Used XDEM JBS40 Concrete Mixer Pump Machine Diesel 84 Kw
Features Gallery Product Description Request A Quote
Features
Specifications
Brand: XDEM
Model: JBS40
Hopper Capacity(L): 400
Electrical Engineering Power(kW): 84
Max. Theo. Concrete Output(m3/h): 40
Max.concrete Pumping Pressure(MPa): 10
Rotate Speed(r/min): 2200
Pumping System Pressure(MPa): 32
Capacity Of Oil Tank(L): 350
Total Weight(kg): 4500
Basic Infomation
Place of Origin: China
Brand Name: XDEM
Model Number: JBS40
Payment & Shipping Terms
Packaging Details: nude
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 4-6 units per month
Product Description

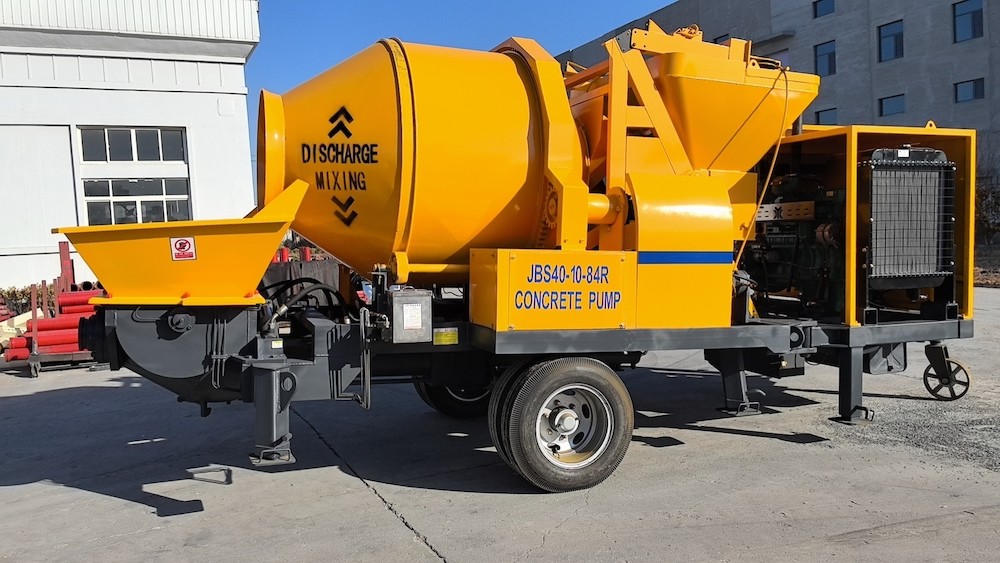

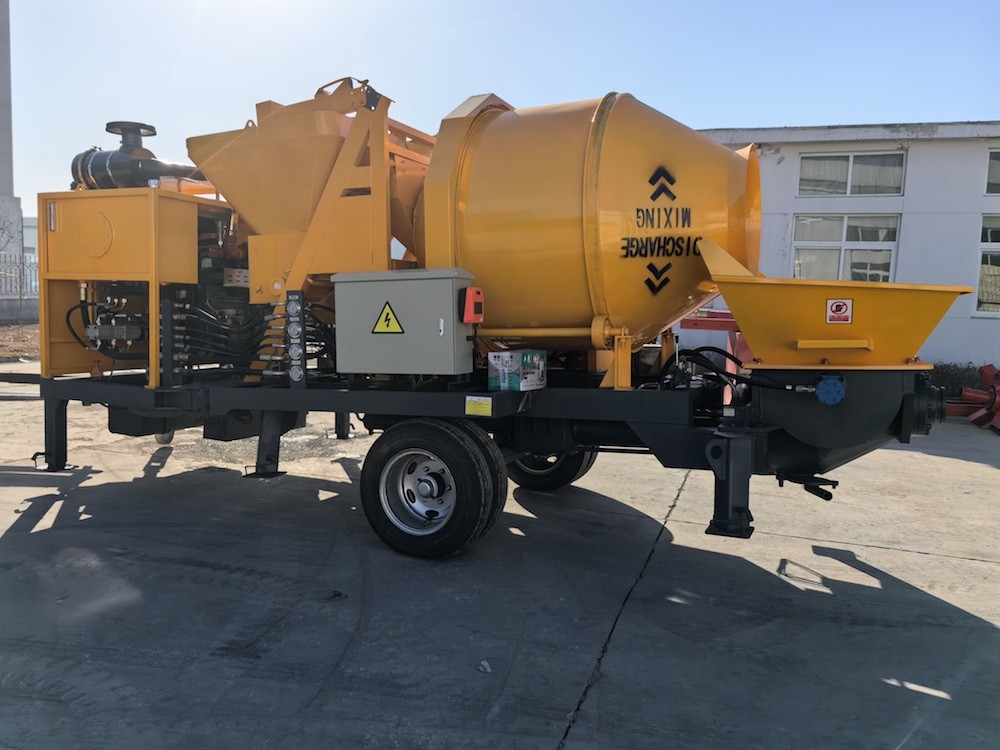

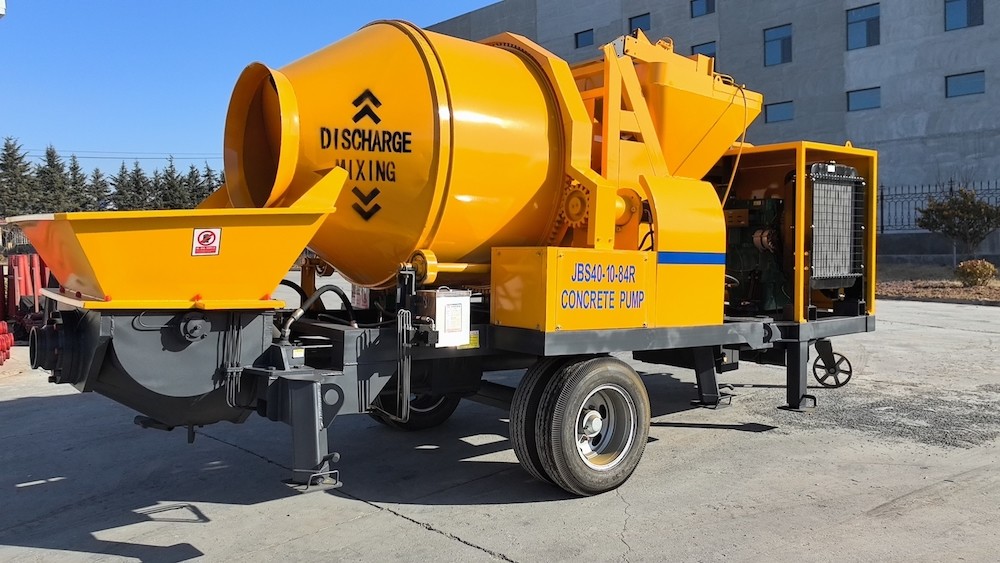

Used XDEM JBS40 Concrete Mixer Pump Machine



Whole performance of machine Max. theo. concrete output m3/h 40
Rated feeding capacity m3 0.56
Rated discharge capacity m3 0.45
Max.concrete pumping pressure MPa 10
Distribution valve type   S Valve
Concrete cylinder diameter×stroke mm Ф180×1000
Hopper capacity L 400
Outlet diameter mm Ф150
Power system Diesel engine model   Weifang Yuxing
Electrical engineering power kW 84
Rotate speed r/min 2200
Hydraulic system Circuit type   Open circuit
Pumping system pressure MPa 32
Mixing system pressure MPa 6-8
Capacity of oil tank L 350
Other parameters Max. aggregate diameter mm Scree: 40
Inside diameter of delivering pipe mm Ф125
Dimensions:length×width×height mm 6000x2300x3150
Total weight kg 4500





After-sales Service Provided:



Engineers available to service machinery overseas





Our Service:



Book hotel before visiting, pick you up in airport, guide you travel around Shanghai when you are free.

More than 20 years experience to dealing with all types of used engineering machinery and shipment service all over the world.

3 Years warranty for engine and pump.



Our Business:



We are supplying various used constrction machines globally for users from different countries. Our machine stocks include excavators, bulldozers, wheel loaders, road rollers, motor graders, dumper trucks, forklifts and cranes,and we alwyas trying to provide machines with excellent quality and good prices.





Also available:



Hitachi: EX100, EX120, EX200, EX210, ZX200, ZX210, ZX230, ZX300, ZX360

Komatsu: PC100, PC120, PC200, PC220, PC300, PC360

Caterpillar: CAT320, CAT 330, CAT 345, CAT 336

volvo: EC210BLC, EC240BLC, EC360BLC, EC460BLC
