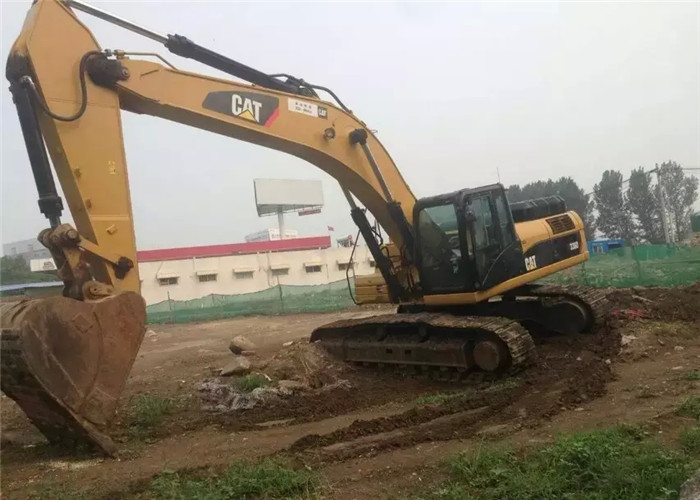

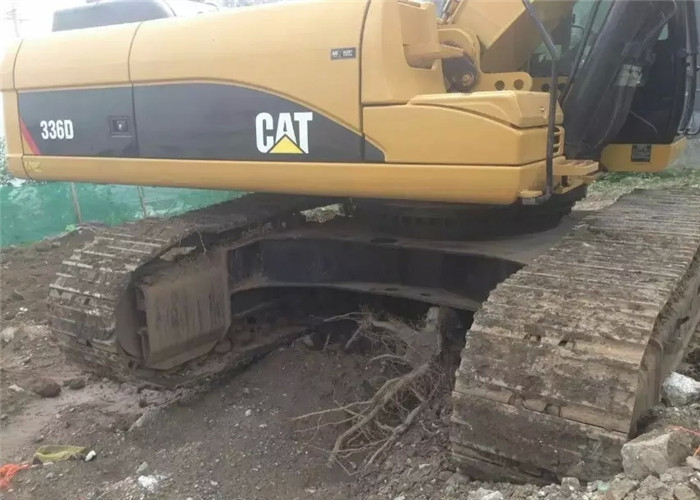

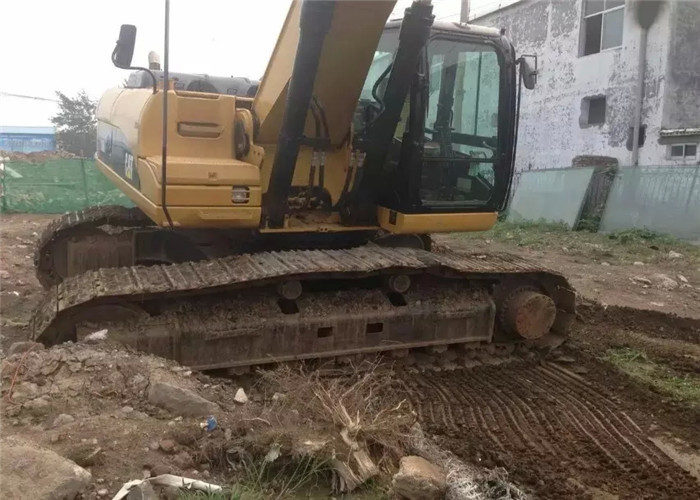

Secondhand Caterpillar 336D Excavator for sale
Maximum excavation height (mm) 10240
Maximum excavation depth (mm) 7390
The maximum excavation radius of the stop surface (mm)
Maximum unloading height (mm) 7200
Maximum vertical excavation depth (mm) 5830
Maximum excavation depth (2.5 m level) (mm) 7230
Slot width × height (mm) No bulldozers
Slot lifting or deepening (mm) No bulldozers
Main body size
Rear radius of rotation (mm) 3500
Minimum ground clearance (mm) 450
Track gauge (mm) 2590
The total width of the track (mm)
Track plate width (mm) 600
Total length of track (mm) 4590
Crawler Grounding Length (mm) 3610
With the ground clearance (mm) 1220
Cab height (mm) 3140
Total transport height (mm) 3340
Total transport width (mm) 3190
Total length of transport (mm) 11150
Coolant (L) 40
Engine oil replacement (L) 40
Hydraulic system (L) 410 (including fuel tank)
Hydraulic tank (L)
Fuel tank (L) 620
Is the hydraulic crushing line available?
Bucket Cylinder - Number × Bore × Stroke (mm) 150 × 1151
Stick cylinder - number × bore × travel (mm) 170 × 1738
Boom cylinder - number × bore × travel (mm) 150 × 1440
Pilot oil path (MPa) 3.9
Rotary hydraulic circuit (Mpa) 2.8
Walking hydraulic circuit (Mpa) 3.5
Working hydraulic circuit (Mpa) 3.5
Main pump maximum flow (L / min) 280
Main Overflow Set Pressure (Mpa) 3.5
Cooling water cooling
Bore × travel (mm × mm) 110 × 127
Number of cylinders 6
Displacement (L) 8.8
Rated power (Kw / rpm) 200/1900
Engine Model C9ACERT
Stick force (kN) 146
Bucket digging force (kN)
Climbing ability (%) 70/35 °
Walking speed (Km / h) 3/5
Rotation speed (rpm) 10
Country of origin Japan
Stick length (mm) 3200
Boom length (mm) 6500
Bucket capacity (square) 1.4
Machine work weight (kg) 33750
Cat excavator really good machine indeed. It has high fuel consumption but no need to say the quality.
quality is very stable, especially for big mining engineer work. Although the speed is not his advantage, but also dare not underestimate his efficiency.
[Shortcomings] fuel consumption is high
|Boom||Not any damaged, enough strong to work|
|Turbo||original turbo ,no heavy smoking after engine turn on|
|Leading time||About 7 work days after u place order|
|Shipping term||Cargo/Ro-ro vessel /40feet-rack-flat|
|Delivery time||Deponds on the destination port, It will cost 15-35 days from shanghai depart port to destination port.|
|Company experience||More than 10 years in this field|
|Payment terms||30%T/T in advance, 40% before loading, 20% after copy B/L.|
|Market||1.Africa: GHANA ,CAMEROON ,Nigeria ,Kenya ,South Africa, Congo, Tanzania, Mozambique ,Zimbabwe,ETC.
2.Asia :Iran ,Oman ,Pakistan ,Qazaqstan , Thailand, Malaysia, Cambodia ,Vietnam ,philippines etc
3.South America: Ecuador, Bolivia, Chile, etc.
Also some buyers from USA &EUROPE, JAPAN, AUSTRALIA, ETC.
Book hotel before visiting, pick you up in airport, guide you travel around Shanghai when you are free.
More than 10 years experience to dealing with all types of used engineering machinery and shipment service all over the world.
3 Years warranty for engine and pump.
