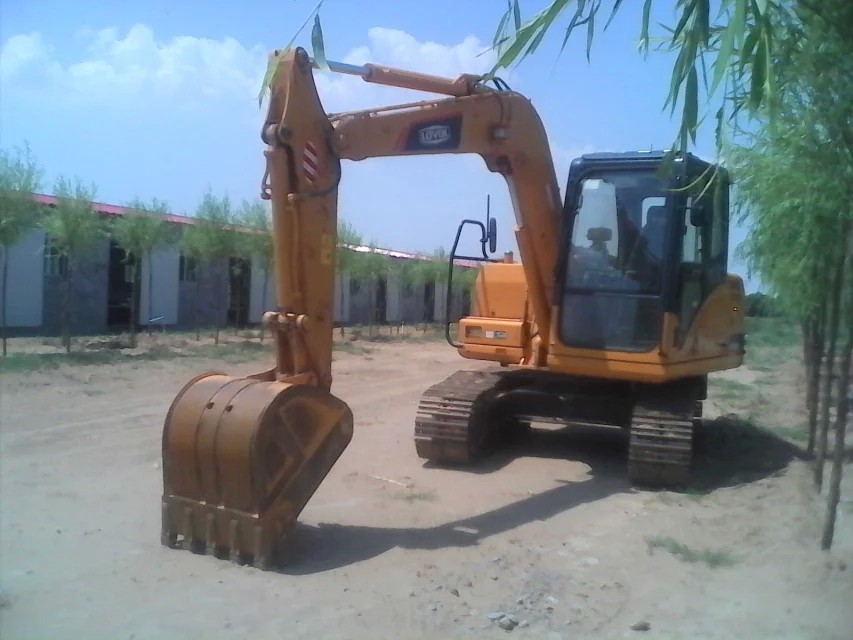

Small Hydraulic Crawler Excavator 8ton FR80G
|
Foton Lovol excavator FR80G parameters in detail |
|
|
Main Parameters |
|
|
Operating Weight (Standard Configuration) (kg) |
8300 |
|
Standard Bucket Capacity (m³) |
0.32 |
|
Dynamical system |
|
|
Engine Type |
Y Cummins (Four strokes,Direct injection, Water cooling, Overhead Valve, Turbo-charging) |
|
Rated Power (kW/rpm) |
60/2200 |
|
Maximum Torque (nm/rpm) |
292/1600 |
|
Displacement (L) |
3.3 |
|
Fuel Tank Capacity (L) |
110 |
|
Hydraulic system |
|
|
Primary Pump Type |
Variable displacement axial piston pump |
|
Maximum Flow of Primary Pump (L/min) |
160 |
|
Maximum Flow of Primary Valve (L/min) |
160 |
|
Operating system |
|
|
Maximum Digging Radius (mm) |
6335 |
|
Maximum Digging Depth (mm) |
4050 |
|
Maximum Digging Height (mm) |
7150 |
|
Maximum Dumping Height (mm) |
5030 |
|
Bucket Digging Force (kN) |
64.7 |
|
Pole Digging Force (kN) |
46.1 |
|
Bulldozing Plates Size (mm) |
2256*406 |
|
Running system |
|
|
Travel Speed (km/h) |
4.8/3.0 |
|
Turning speed (rpm) |
12 |
|
Maximum Traction Force (kN) |
63 |
|
Climbing Performance(°) |
30 |
|
Ground Pressure (kPa) |
37 |
| Item | Unit | FR80G | |
| A | overall length( during transportation) | mm | 6100 |
| B | total height ( during transportation) | mm | 2650 |
| C | total width | mm | 2275 |
| D | track shoe length | mm | 2750 |
| E | cab roof to ground height | mm | 2650 |
| F | tail turning radius | mm | 1750 |
| G | track width | mm | 450 |
| H | ground contact length of track | mm | 2130 |
