HOWO 6x4 Dump Truck
| Product | HOWO 6x4 Dump Truck | Model | ZZ3257N3647B | |
| Drive type | 6x4, left-hand drive or Right-hand Drive | |||
| Dimension | Overall dimension (mm) L*W*H | 8214*2496*3386 | ||
| Box inside dimension (mm) L*W*H | 5600*2300*1500 | |||
| Bucket cubage (m 3 ) | 20 | |||
| Thickness of box (mm) | floor 8, side 4 | |||
| Wheel base (mm) | 3625+1350 | |||
| Overhang (front/rear, mm) | 1500/1739 | |||
| Wheel tread (frong/rear, mm) | 2022/1830 | |||
| Approach/departure angle (°) | 19/26 | |||
| Weight | Gross vehicle weight(kg) | 12,290 | ||
| Pay load (kg) | 12,580 | |||
| Actual load (kg) | > 23000 | |||
| Overall weight (kg) | 25,000 | |||
| Box lifting type | Front hydraulic lifting | |||
| Max. speed (km/h) | 75 | |||
| Chassis | Number of axles | 3 | ||
| Tire | 12.00R20, radial tire | |||
| Number of tires | 10+1 | |||
| Cab | Model | HW70 standard, two seats, air conditioner, no bed |
||
| Engine | Model | WD615.47 | ||
| Displacement (ml) | 9726 | |||
| Rated power (hp/rpm) | 371/2200 | |||
| Emission standard | Euro 2 | |||
| Fuel tank capacity (L) | 300 | |||
| Clutch | Model | single, dry spring | ||
| Gear box | Model | HW19710 | ||
| Type | manual | |||
| Gears | 10 forward, 2 reverse | |||
| PTO | included | |||
| Steering | Model | ZF 8098 | ||
| Type | integral power steering | |||
| Front axle | Model | HF9 hub, 9,000 kgs | ||
| Rear axle | Model | HC16, 2x16,000 kgs | ||
| Braking system | Type | Air brake | ||
| ABS |
Optional |
|||

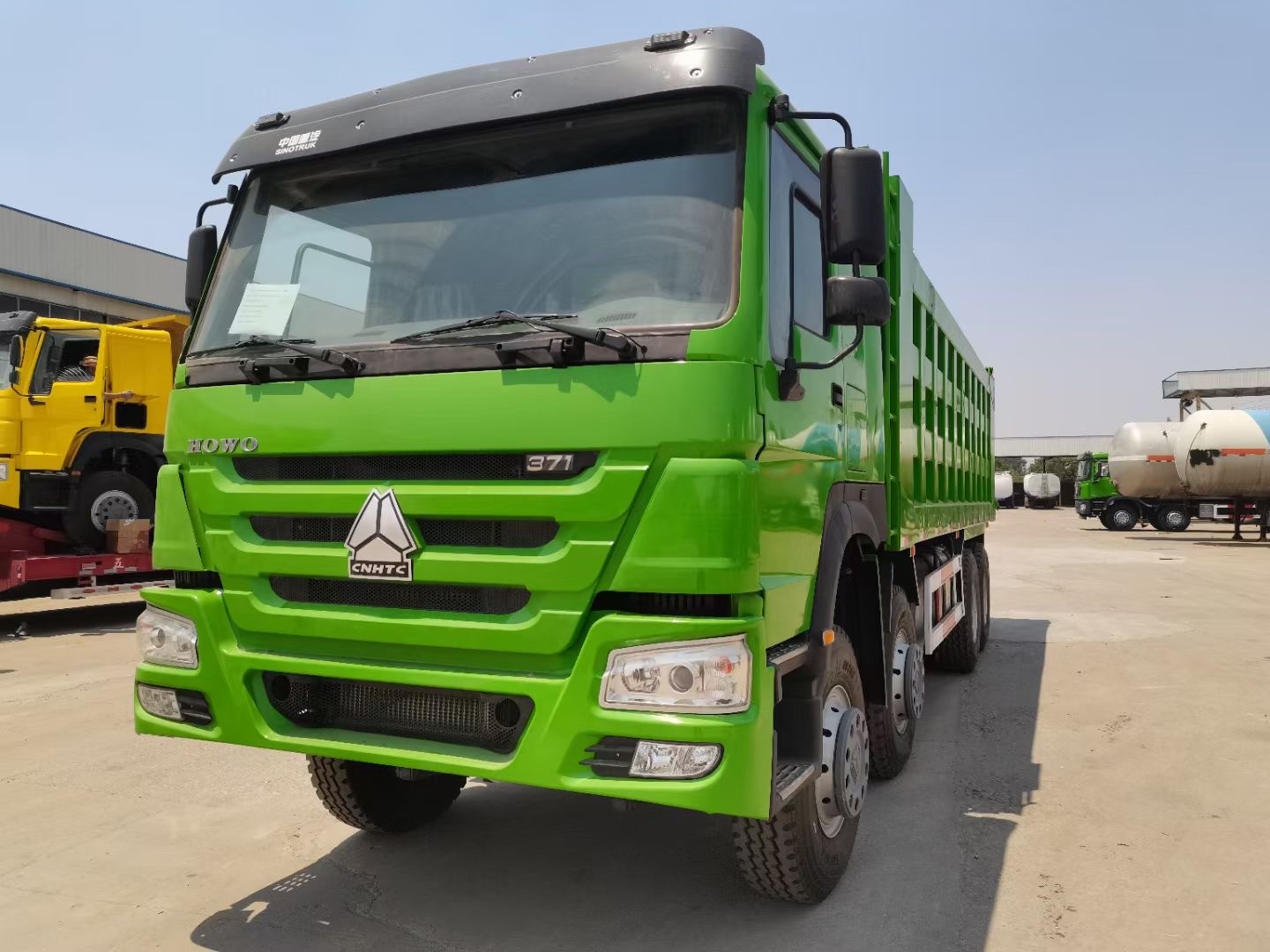

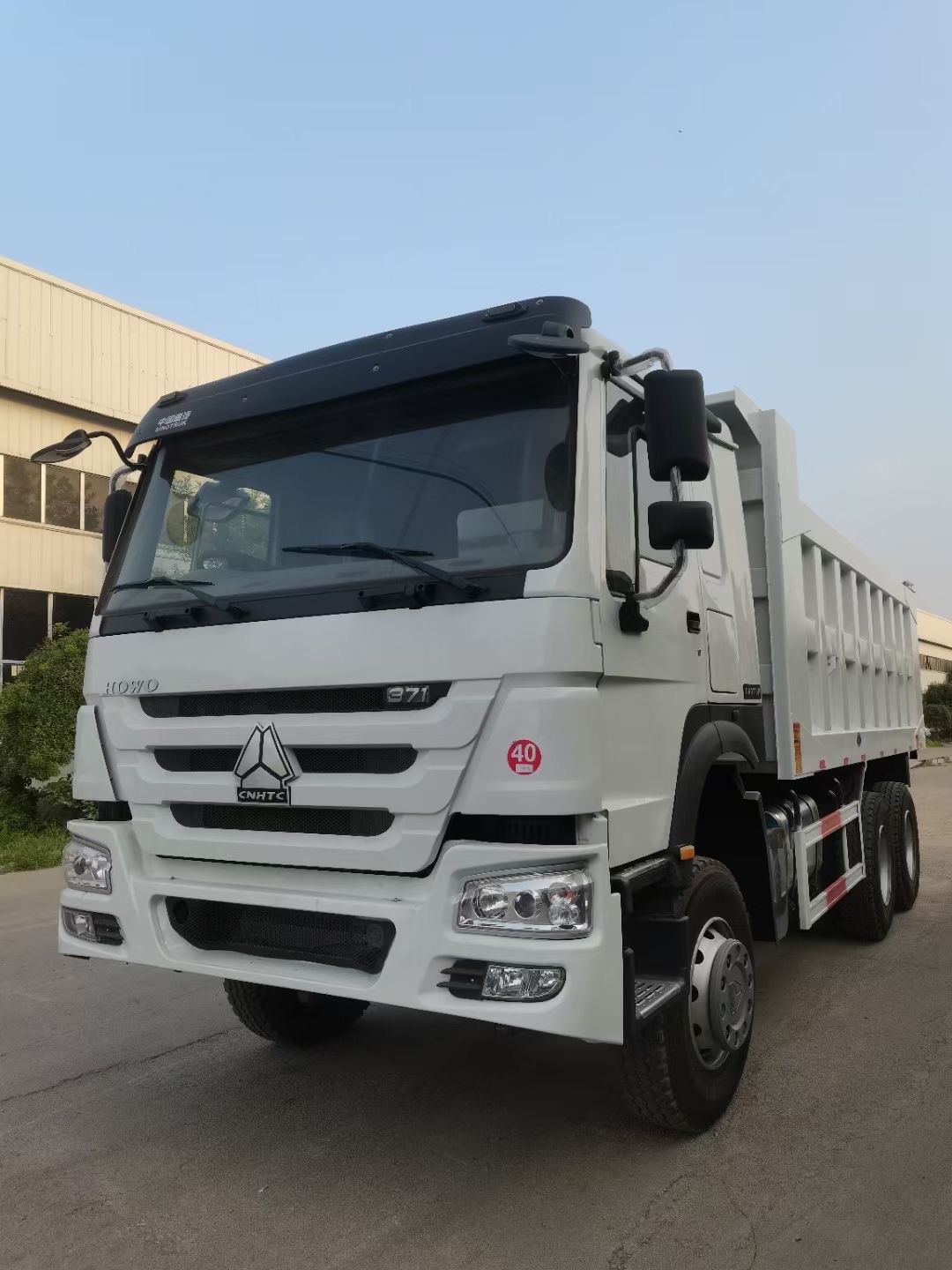

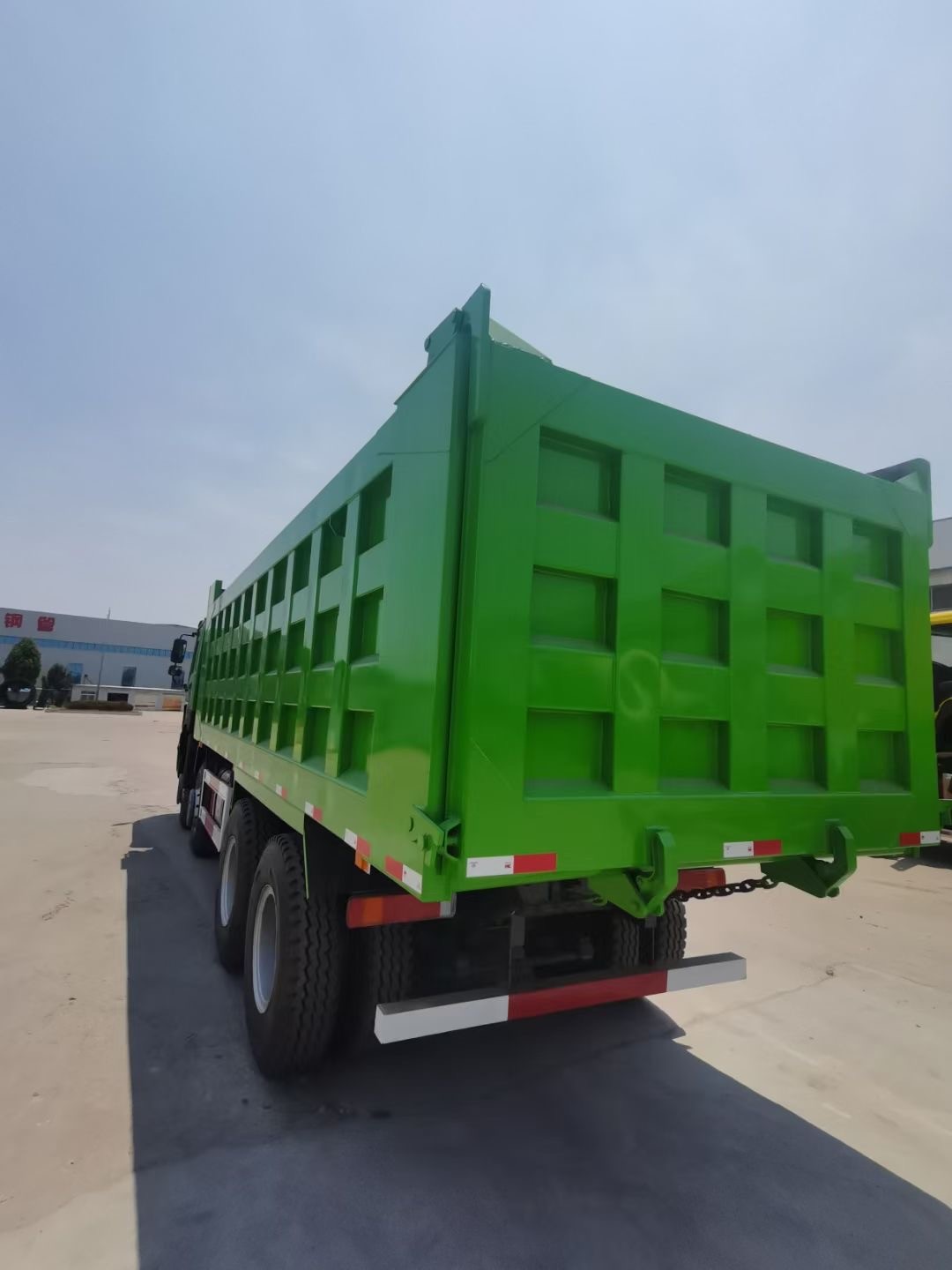

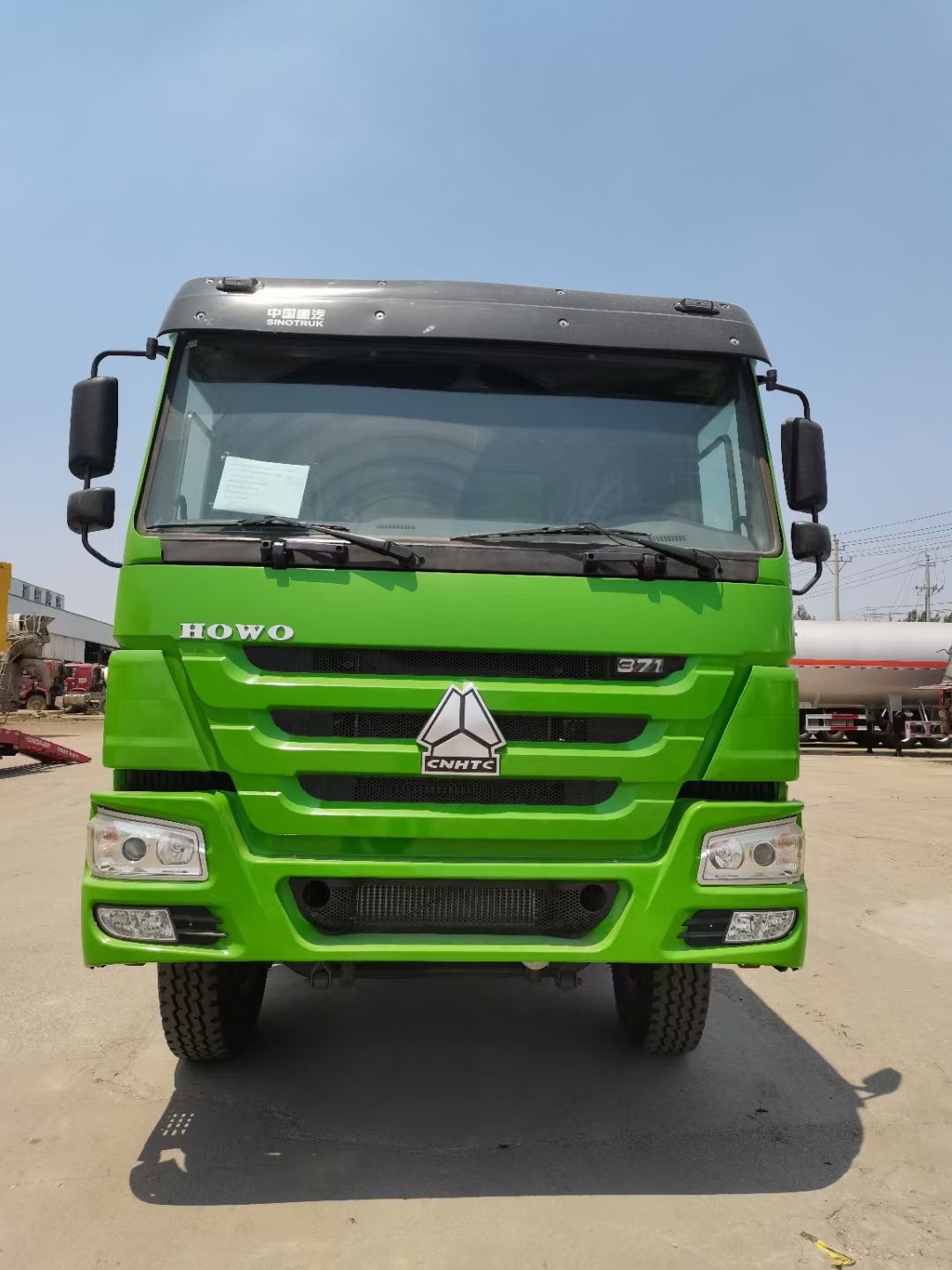

Pictures of Used HOWO 6x4 8x4 Dump Truck
After-sales Service Provided:
Engineers available to service machinery overseas
Our Service:
Book hotel before visiting, pick you up in airport, guide you travel around Shanghai when you are free.
More than 20 years experience to dealing with all types of used engineering machinery and shipment service all over the world.
3 Years warranty for engine and pump.
Our Business:
We are supplying various used constrction machines globally for users from different countries. Our machine stocks include excavators, bulldozers, wheel loaders, road rollers, motor graders, dumper trucks, forklifts and cranes,and we alwyas trying to provide machines with excellent quality and good prices.
Also available:
Hitachi: EX100, EX120, EX200, EX210, ZX200, ZX210, ZX230, ZX300, ZX360
Komatsu: PC100, PC120, PC200, PC220, PC300, PC360
Caterpillar: CAT320, CAT 330, CAT 345, CAT 336
volvo: EC210BLC, EC240BLC, EC360BLC, EC460BLC
