HOWO 8x4 375 HP Dump Truck
Used HOWO SINOTRUK Dump Truck 8x4 Second-hand HOWO 375 HP Tipper Truck
| Item | SINOTRUK HOWO 8X4 Dumper Truck | |
| Chassis model | ZZ3317N3567C1 | |
| Driving type | Left hand drive (LHD) | |
| Max. speed | 75km/h | |
|
Engine |
Model | SINOTRUK brand, WD615.96E, 375hp, Euro III, Diesel. |
| Type | Six cylinders inline, water cooling, 4 stroke, supercharge inter cooler | |
| Fuel tanker(L) | 400 | |
| Rated Power (kw/rpm) | 276/2000 | |
| Compression ratio | 17:1 | |
| Bore X Stroke | 126x130mm | |
| Displacement | 9.726L | |
|
Cabin |
HW76, plat-roof cab, one sleeper (berth), Air-conditioner, MP3, safety belts, curtain. Adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers. | |
| Transmission | HW19710, manual. | |
| Transmission ratio | 5.45 | |
| Overhang | Front/Rear: 1500/2095 | |
| Steering | ZF8118 steering gear, ZF Steering pump, power steering with hydraulic system. | |
|
Brake system |
Service brake: dual circuit compressed air brake | |
| Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels | ||
| Auxiliary brake: engine exhaust brake | ||
|
Electric system |
Operating voltage: 24 V, negative grounded | |
| Starter: 24 V, 5.4 Kw | ||
| Alternator: 3-phase, 28 V, 1500 W | ||
| Batteries: 2 x 12 V, 165 Ah | ||
| Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light | ||
| Tyre | 12.00-20,12.00R20 | |
|
Size |
Overall Dimensions |
10245×2496×3450mm |
| Wheelbase | 1800+3500+1400mm | |
| Cargo Box | 7300*2300*1100mm | |
| Weight | Curb:15.45T；Loading: 15.42T; Gross vehicle: 31T | |

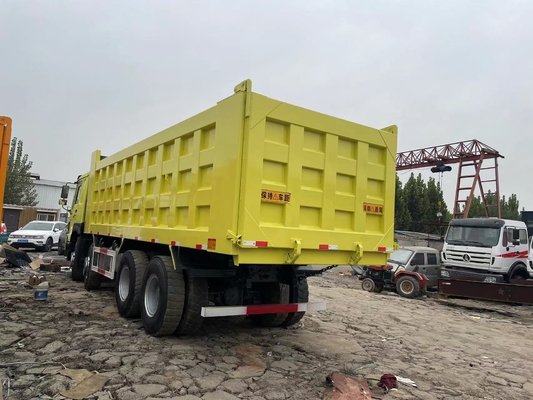

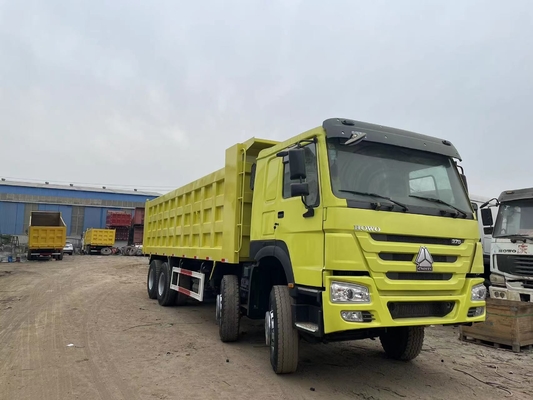

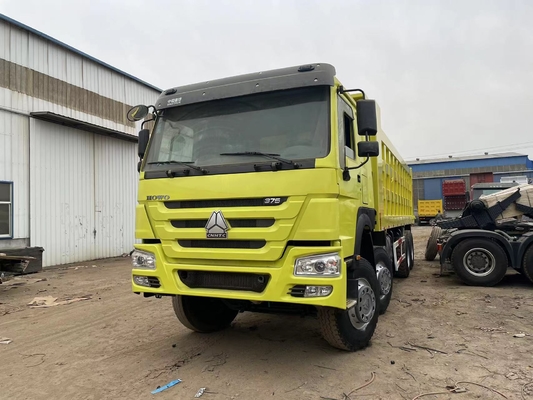

Pictures of Used HOWO 8x4 375 HP Dump Truck
After-sales Service Provided:
Engineers available to service machinery overseas
Our Service:
Book hotel before visiting, pick you up in airport, guide you travel around Shanghai when you are free.
More than 20 years experience to dealing with all types of used engineering machinery and shipment service all over the world.
3 Years warranty for engine and pump.
Our Business:
We are supplying various used constrction machines globally for users from different countries. Our machine stocks include excavators, bulldozers, wheel loaders, road rollers, motor graders, dumper trucks, forklifts and cranes,and we alwyas trying to provide machines with excellent quality and good prices.
Also available:
Hitachi: EX100, EX120, EX200, EX210, ZX200, ZX210, ZX230, ZX300, ZX360
Komatsu: PC100, PC120, PC200, PC220, PC300, PC360
Caterpillar: CAT320, CAT 330, CAT 345, CAT 336
volvo: EC210BLC, EC240BLC, EC360BLC, EC460BLC
